Bluetooth Low Energy Range Extender
Bluetooth Low Energy Range Extender
Reference Designs
Dialog’s SmartBond™ Range Extender reference designs enable you to take full advantage of the output power of the Bluetooth low energy standard to extend the range of your applications.
By combining Dialog’s best-in-class Bluetooth low energy chip with Skyworks high-efficiency RF power amplifier front-end-module, Dialog’s range extender offers you optimal range without compromising on power consumption. The resulting solution also meets all Bluetooth low energy and regulatory requirements such as FCC and CE compliance.

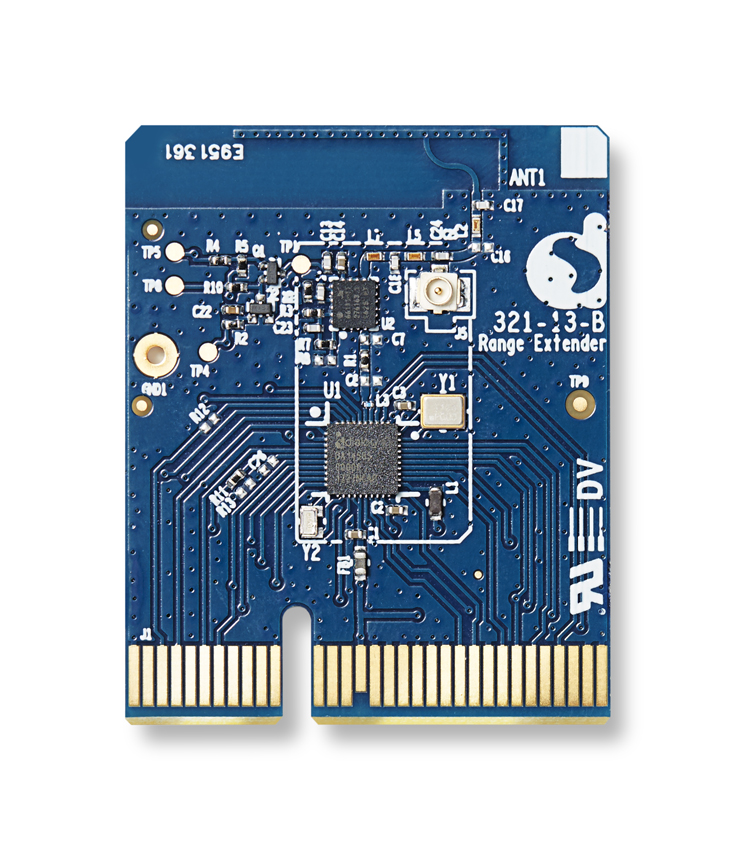

DA14585/6 Range Extender |
DA1468x Range Extender |
|
| DA14585 + SKY66111 | DA14681 + SKY66112 | |
 |
 |
|
Maximized range |
Up to +9.3 dBm Nominal Maximum Output Power | Up to +13.5 dBm Nominal Maximum Output Power |
|
Better than -91 dBm receive sensitivity |
Better than -95.5 dBm receive sensitivity | |
| > 100.3 dBm link budget | > 109 dBm link budget | |
Power consumption |
Tx <17 mA system peak @ 3 V @ +9.3 dBm Nominal Maximum Output Power |
Tx <59 mA system peak
@ 3 V @ +13.5 dBm Nominal Maximum
Output Power |
Resources
| Date | Version | |
|---|---|---|
| DA14585 Range Extender Product Brief | 10/01/2018 | 1.0 |
| Date | Version | |
|---|---|---|
| DA14585 Range Extender SW Release Notes | 01/08/2019 | 1.1 |
| UM-B-074 DA1468x Range Extender Supporting Material | 14/12/2016 | 1.0 |
| DA14580 Range Extender Ref Design gerbers_layout_bom Version 2 | 05/10/2015 | 1.3 |
| Date | Version | |
|---|---|---|
| Schematic and Layout of devkit-PRO to DA14580 FEM interposer board | 05/10/2015 | 1.0 |
| DA14580 Range Extender Ref Design Schematics Version 2 | 05/10/2015 | 1.0 |
| Date | Version | |
|---|---|---|
| DA14585 + SKY66111 Range Extender Software Driver | 01/08/2019 | 1.1 |
| Range Extender 2. Supporting SDK files | 09/11/2015 | 1.0 |
| Date | Version | |
|---|---|---|
| UM-B-089 User manual DA14585 Range Extender Reference Application | 01/08/2019 | 1.1 |
| UM-B-074 DA1468x Range Extender Daughterboard | 16/05/2018 | 1.1 |
| UM-B-045 User manual Range Extender version 2 | 05/10/2015 | 1.1 |
Smartbond™ family
Giving designers freedom to increase battery lifetimes, create smaller form factors than ever before, and reduce system cost.
Development Tools
Our SmartBond™ products are supported by development kits and our SmartSnippets™ Bluetooth software platform to help you while you easily develop and add your own custom profiles as needed.
