Problem downloading code with DA14531 Development kit USB

10 months ago

Hi talamram,

I would recommend first checking theGetting Started with SDK6 (HTML).

Please see section 2 / Fig. 3 and ensure that you have the same configuration:

http://lpccs-docs.dialog-semiconductor.com/Tutorial_SDK6/preparing.html

10节中,你会发现如何使用步骤UART for printing debugging information.

Thanks, PM_Dialog

• Log in或registerto post comments

10 months ago

谢谢你的回复。

I can confirm that the configuration of my board is according to section 2 / Fig. 3

Currently, I am trying the example as layed out inhttp://lpccs-docs.dialog-semiconductor.com/Tutorial_SDK6/bd_name.html#b…

However, it seems to me that this tutorial mentions files that don't exist in the sdk sample projects, namely:

user_peripheral_template.h
用户\外围设备\模板.c

This project does contain:

user_empty_peripheral_template.h
user_empty_peripheral_template.c

Thanks for any clarification on this. I am using SDK 6.0.14.1114

• Log in或registerto post comments

10 months ago

Hi talamram,

Thanks for your finding! Could you please double check if you are following the proper steps?

If I am not mistaken, you are unable to perform step 6.1. Can you please run it in debug mode and add a BKPT in memcpy() ? Is the new device name mem-copied correctly?

Thanks , PM_Dialog

• Log in或registerto post comments

10 months ago

Yes I have double checked with a clean install of the SDK and have followed the proper steps.

我建议你检查一下SDK_6.0.14.1114\DA145xx_SDK\6.0.14.1114\projects\target_apps\templatevs the instructions in the tutorial. Also, is there a reason the tutorial does not state the enclosing folder of the files it mentions?

• Log in或registerto post comments

10 months ago

Hi talamram,

I have followed steps 5 and 6. Can you please clarify again what is the problem? Is this one in your initial post?

The files can be found under the Project tree in the Keil IDE. However, I will ask if we can add the folders too.

Thanks, PM_Dialog

• Log in或registerto post comments

10 months ago

The problem is that I can't download a program to the target ;) I am trying out these tutorials, but I'm getting stuck at a pretty early stage.

Please see my screenshots of the file tree from Keil attached (all the user folders), the filesuser_peripheral_template.hand用户\外围设备\模板.care not present in the file tree.

Attachment	Size
Keil-Filetree.pdf	222.82 KB

• Log in或registerto post comments

10 months ago

Hi talamram,

请使用user\u empty\u peripheral\u template.h/.c而不是user\u peripheral\u template.h/.c

Are you trying through the Keil IDE to download FW onto target? Are you getting any error?

Thanks, PM_Dialog

• Log in或registerto post comments

10 months ago

Ok, I will use user_empty_peripheral_template.h / .c instead of user_peripheral_template.h / .c

Regarding downloading to the target; I am using KEIL IDE. And yes, I am getting an error, like I mentioned in my first post:

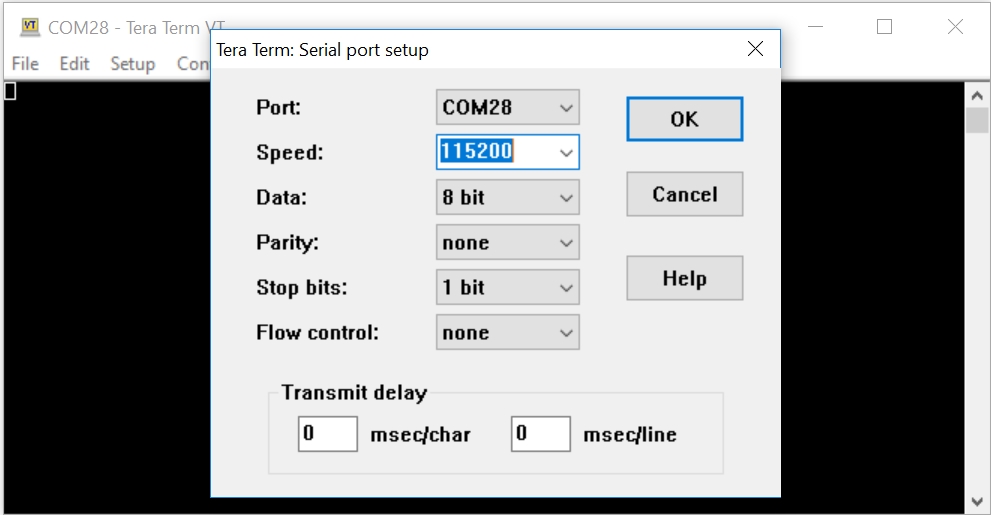

Although debugging works (to an extent - I do not get UART printouts in my terminal emulator) with these; when I build the files and then press the 'Download' button (F8) I get the following error (no other output):

--- Error: failed to execute ' '

Any idea what I am doing wrong here?

• Log in或registerto post comments

10 months ago

Hi talamram,

Please share screenshots showing the steps and the error. I'd like to replicate it.

Thanks, PM_Dialog

• Log in或registerto post comments

10 months ago

谢谢你的迅速回复。不幸的是，我明天才能使用开发工具包。我将在大约24小时后发回；谢谢您！

• Log in或registerto post comments

10 months ago

Hi talamram,

OK - please share the screeonshots tomorrow!

Thanks, PM_Dialog

• Log in或registerto post comments

10 months ago

Hi PM_Dialog,

So, using user_empty_peripheral_template.h / .c instead of user_peripheral_template.h / .c worked and I have been able to successfully go through all steps in section 6.

Perhaps I'm getting ahead of myself, but when I click the Download button (highlighted in red), I get the error--- Error: failed to execute ' '

Attachment	Size
png2pdf.pdf	592.14 KB

• Log in或registerto post comments
